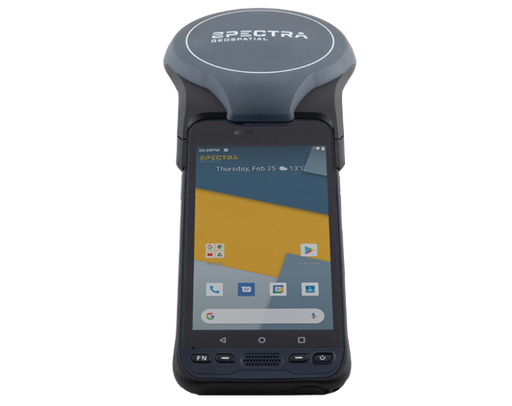

​SP30 GNSS Handheld

GNSS CHARACTERISTICS
• 240 GNSS channels
– GPS L1 and L2
– GLONASS L1 and L2
– BeiDou B1 and B2
– Galileo E1 and E5b
– QZSS L1 and L2
– SBAS L1 (WAAS, EGNOS, MSAS, GAGAN)
– L-band
• Scalable accuracy from meter to centimeter
(meter, sub meter (30/30), decimeter (7/2), centimeter)
• Patented Z-Blade technology for optimal GNSS performance
• Full utilization of signals from all 6 GNSS systems
(GPS, GLONASS, BeiDou, Galileo, QZSS and SBAS)
• Enhanced GNSS-centric algorithm fully-independent GNSS
signal tracking and optimal data processing, including
GPS-only, GLONASS-only or BeiDou-only solution
(autonomous to full RTK)
• Fast Search engine for quick acquisition and re-acquisition
of GNSS signals
• Patented SBAS ranging for using SBAS code & carrier
observations and orbits in RTK Processing
• Patented Strobe™ Correlator for reduced GNSS multi-path
• Supported data formats: ATOM, CMR, CMR+, RTCM 2.1, 2.3, 3.0,
3.1 and 3.2 (including MSM), CMRx and sCMRx
• External antenna connector (TNC)
• Protection against future LTE and 5G signals thanks to new
TALLYSMAN®
extended filtering technology

REAL-TIME ACCURACY (RMS)
Meter (SBAS only)
• Horizontal: < 70cm
• Vertical: < 90 cm
Sub-Meter
• Horizontal: 30cm
• Vertical: 30cm
Decimeter
• Horizontal: 7cm
• Vertical: 2cm
Centimeter 3
• Horizontal: 10 mm + 1 ppm
• Vertical: 15 mm + 1 ppm

REAL-TIME PERFORMANCE
• Instant-RTK® Initialization
– Typically 2 sec for baselines < 20 km
– Up to 99.9% reliability
• RTK initialization range: over 40 km

TRIMBLE RTX POSITIONING
• FieldPoint™ RTX: 10 cm horizontal
• Initialization Fast: < 5 min

POST-PROCESSING ACCURACY (RMS)
• Horizontal: 15mm + 1ppm
• Vertical: 25 mm + 1 ppm

PROCESSOR
• Qualcomm Snapdragon 626
• Clock frequency: 2.2 GHz

OPERATING SYSTEM
• Android® 10 (Google certified)
• Android Security Updates provided until December 2024
• Software package includes: Google Mobile Services

MEMORY
• 4 GB RAM
• Storage: 64 GB (non volatile).
• MicroSDXC™ memory card (up to 256 GB)

COMMUNICATIONS
• Cellular
– GSM (850,900,1800,1900), WCDMA (B1, B2, B5, B8), LTEFDD(B1, B2, B3, B4, B5, B7, B8, B12, B13, B17, B20, B25, B28),
LTE-TDD (B38/B39/ B40/B41), TD-SCDMA (B34, B39)
• Nano SIM x2
• Wi-Fi (IEEE) 802.11 a/b/g/n/ac
• Bluetooth 4.1
• NFC (13.56 MHz)
• USB 3.0 (Type C)

ENVIRONMENTAL CHARACTERISTICS
• Operating temperature: -20° to +55°C (-4 to 131°F) 5
• Storage temperature: -40° to +70°C without battery
(-40 to 158°F) 5
• Humidity: 5% to 90% RH, non-condensing. According to

MIL-STD-810H 507.6
• Water & dust proof: IP67 (IEC 60529)
• Salt fog (MIL STD 810 H method 509.7)
• Free drop: 1.2 m (3.9ft), 10 drops
(2 faces, 4 edges and 4 corners) on concrete
• Shocks: MIL STD 810G (fig 516.6-10 Procedure I)
• Vibration: MIL-STD-810G (fig 514.6CI-Cat4)
• Altitude: MIL-STD-810G-2014 Method 500.5

POWER CHARACTERISTICS
• Battery Li-Ion: 8000mAh
• Battery life: > 8 hrs @ 20 °C (68°F) with GNSS on
• Charging time: 4 hours
• Removable battery

PHYSICAL CHARACTERISTICS
• Size: 30.6 x 12.2 x 4.7 cm (12 x 4.8 x 1.8 in)
• Weight: 790 g (1.74 lb)
User interface
• 2 volume keys, on/off key, 4 programmable keys, standard
Android touch panel 3 buttons
• On screen keyboard display
• Size: 6.0” capacitive multi touch
• Resolution: 1920 x 1080 pixels
• Brightness: 450 Cd/m2
• Panda glass 3 damage-resistant
• Auto rotate between Portrait and Landscape

MULTIMEDIA & SENSORS
• Rear camera: 13 M pixels with auto-focus and LED flash
• Front camera: 5 M pixels with fixed focus
• E-Compass
• Gyrometer
• Accelerometer
• Ambient light sensor
• Barometer
• Speaker
• Microphone
• Light sensor

STANDARD ACCESSORIES
• Handstrap
• Screen protectors (x2)
• A/C charger
• USB cable
• Pouch
• Battery door opener
• Monopole adaptor

OPTIONAL ACCESSORIES
• External GNSS antenna
• Pole bracket
• Monopole
• Dual-battery charger

OPERATING MODES
• RTK rover: Direct IP, NTRIP (VRS,FKP,MAC networks)
• Post-processing with MobileMapper Office
• Trimble RTX IP or Satellite
(both exhibit excessive power consumption)

FIELD SOFTWARE
• Origin LT
• Origin GNSS
• MobileMapper Field
• Penmap
• or 3rd party Android applications

SP30 Datasheet
