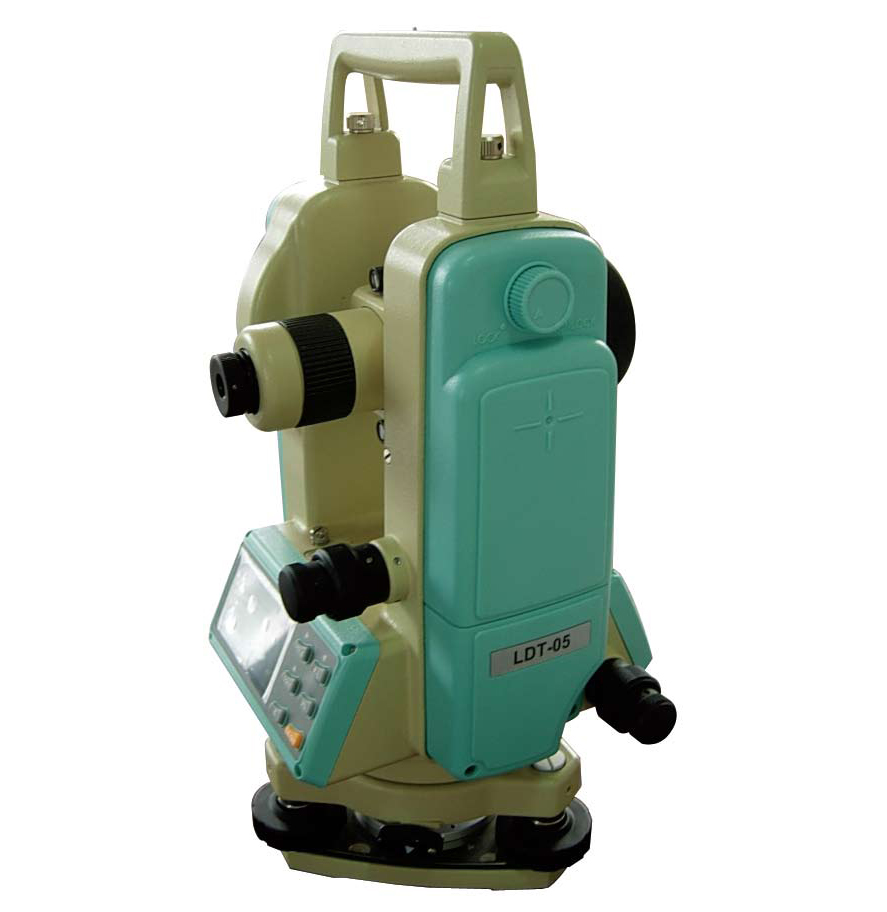

6003830 LDT-05 DIGITAL THEODOLITE

(0 review)

The LDT-05 digital electronic theodolite is designed for enhanced performance in construction applications. Work faster with the advanced features of the LDT-05 to improve productivity while increasing the bottom line.

Includes:

LDT-05 5" Theodolite with carry case
laser plummet
Auto vertical compensation
Dual keyboard

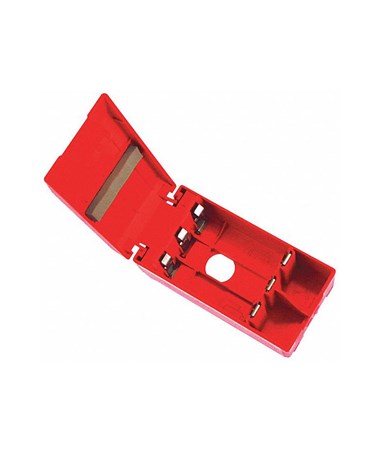

Rechargeable Alkaline battery with holder
Charger
Plumb bob, Tool kit and user manual

$ 1,495.00 1495.0 USD $ 1,495.00

$ 1,495.00

    This combination does not exist.

    ADD TO CART
    ​
    Leica GeoSystems

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Highlights

    • 5-second precision readouts
    • Reticle illuminator
    • Laser plummet
    • IP54 Environmental rotection
    • Back-lit LCD display panels
    Telescope
    Image Erect
    Magnification 30x
    Diameter of Objective Lens (Aperture) 1.7 in (45 mm)
    Focus Distance 4.43 ft (1.35 m) to infinity
    Field of View 1 degree 30 minutes
    Ratio of Stadia Lines 1/100
    Resolving Power 3 seconds
    Reticule Illumination Yes, on/off button
    Quick Sites (Rough Sites) Yes

    Angle Measurement
    Minimum Reading 1 second, 5 second, or 10 second
    Unit of Reading/Measure Degree / mil / gon / V%
    Display Dual back-lit LCD
    Accuracy 5 second
    Measuring Method/Reading System Incremental photoelectricity
    Detection Method Horizontal both sides, vertical single side

    Level
    Plate/Tubular Bubble Vial 30 seconds/2 mm
    Circular Bubble Vial 8 minutes/2 mm

    General
    Weight 10.14 lbs (4.6 kg)
    Warranty 1 year
    Dimensions 6.4 x 6.1 x 13.4 in. (164 x 154 x 340 mm)
    Protection Class IP54
    Tripod Thread 5/8 x 11
    Auto Shut Off After 30 minutes
    Tribrach Detachable

    Battery/Power

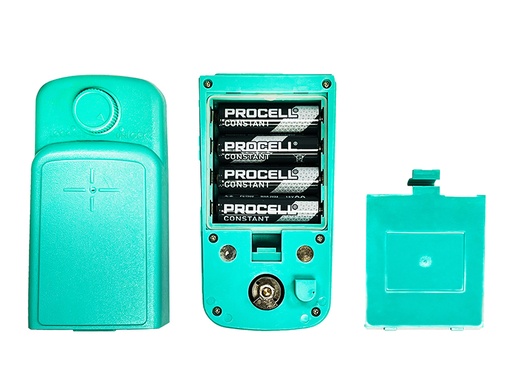

    Power Source NiMH rechargeable, option for 4 AA alkaline batteries
    Battery Life Alkaline - up to 36 hours
    Battery Life Alert Visible alert
    Voltage 4.8

    Applications
    90-Degree Layout Yes
    Checking Angles Yes
    Alignment and Plumb Yes
    Short-Range Leveling Yes
    General Construction Yes
    Anchor Bolt Positioning Yes
    Steel Column Placement Yes
    Setting Elevations Yes
    Setting Lines Yes
    Basic Grade Work Yes
