840386 NA532 32X Auto Level

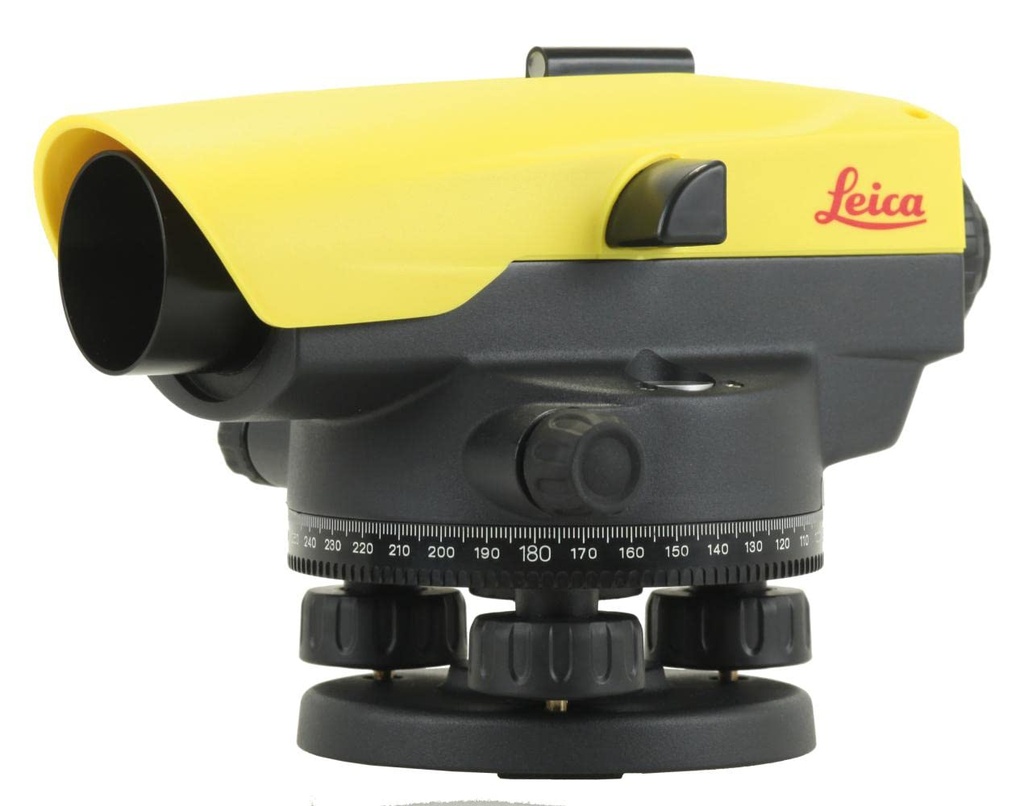

Leica NA500 Series 32x Automatic Level - 840386

Model Number: NA532

With the many obstructions and uneven surfaces, construction and building sites are full of levelling challenges. To ensure the straightest and safest construction possible, you need a reliable instrument for all your levelling needs. On your terms, on your site, Leica Geosystems is your trusted partner and the Leica NA500 Series provides you with reliable levels for accurate measurements and high quality results.

Specifications:

• Telescope image: upright
• Magnification: 32x
• Objective aperture: 36 mm
• Shortest target distance from instrument axis: < 1.0 m
• Field of view at 100 m: < 2.1 m
• Multiplication factor: 100
• Additive constant 0: 0
• Working range: ± 15’
• Setting accuracy (standard deviation): < 0.5’’
• Sensitivity: 8’ / 2 mm
• Graduation: 360°
• Graduation interval: 1°
• Weight (net): 1.5 kg
• Operating temperature range: –20°C to +50°C
