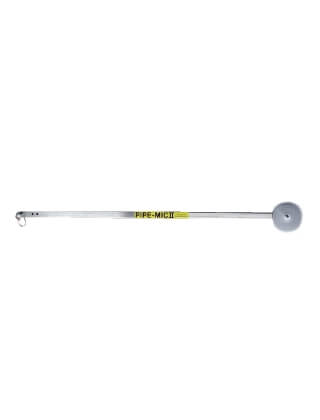

PIPE-MIC II Measure pipe inverts and sizes fast, easy & accurate.
Made in the USA* Measurements are more accurate because you are measuring with a vertical plumb rod.
* Made for Crain 25' SVR, USL rods and our new double sided PIPE-MIC II rod.
* Made of lightweight (two pounds) non rusting aircraft aluminum.
* No tools needed to attach to rod.
* Slides on and off in seconds.
* Round foot design slices through material at bottom of pipe and insures accurate invert and pipe diameter measurement.
By pulling a pin in just seconds you can go from zero to 1 ft. vertical offset for clearance under rod.
You Tube Link on how the PIPE-MIC II works
https://www.youtube.com/watch?v=w14RyKkqlus&feature=youtu.be

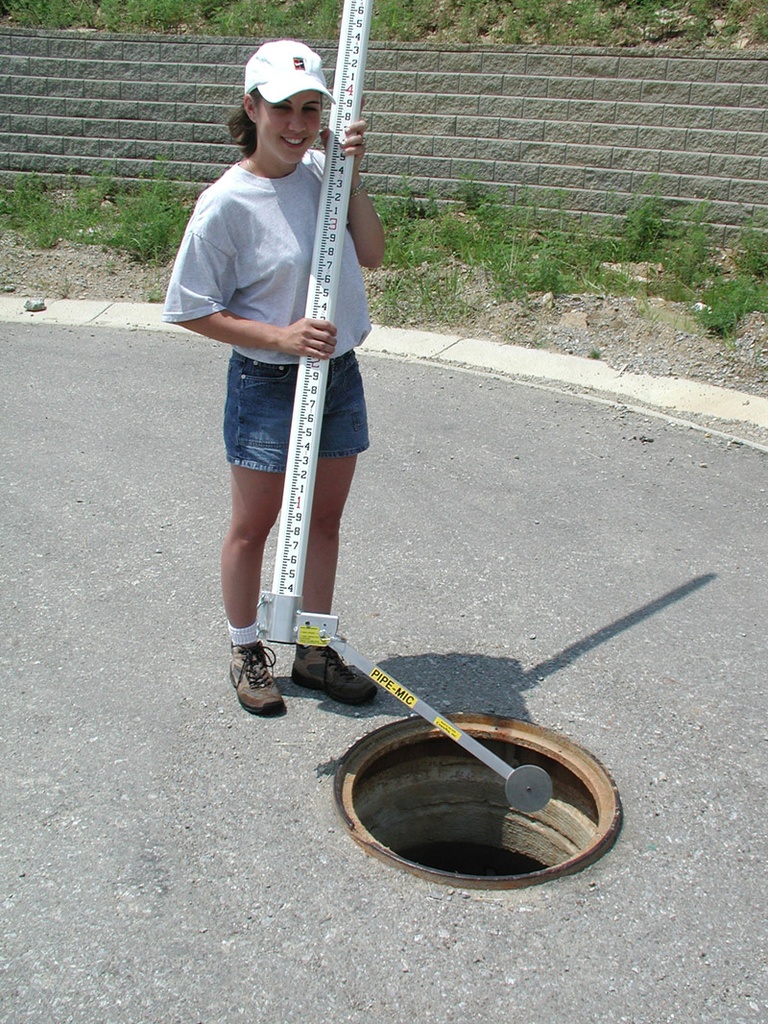

To use:
* You can direct read the depth of the invert when the pin is set at "zero offset" on the PIPE-MIC II .
* If you need clearance under rod to measure an invert move the pin to "1' vertical offset hole"
* If you need clearance under rod and a pipe that is hard to reach you can add a 1 ft. extension.
(1 ft. extension sold separately) Move pin to " 1 ' vertical offset w/ 1' extension" hole.
To size a pipe:
The foot is 0.33 or 4". Take the reading from the rim, pull up and take reading plus 0.33 and that is your pipe size.
