It is the fastest, easiest, and least obtrusive way to scan a large building, space, or environment. Due to its powerful technology yet simple operation, it is easy for users of any experience level to simply pick up the BLK2GO, turn it on, and capture a digital twin of a space or structure quickly and accurately while walking through it.
The BLK2GO captures 420,000 points per second and includes GrandSLAM technology: a combination of LiDAR SLAM, visual SLAM, and an IMU to orient itself in 3D space and scan while in motion. It is fully compatible with the Leica Geosystems Cyclone suite of Reality Capture software and offers unprecedented scanning speed to reality capture users in industries worldwide.
Leica Cyclone REGISTER 360 PLUS (BLK Edition) Subscription
Leica Cyclone REGISTER 360 PLUS (BLK Edition) features an intuitive UI, guided workflows and an easy process for working with data downstream with more advanced tools like Cyclone 3DR or CloudWorx. Or export your cloud as a standard E57 file or Autodesk's native RCP file format.
Get started out of the box.
Cyclone REGISTER 360 PLUS (BLK Edition) is optimized for the BLK2GO and provides streamlined workflows to assist new users and speed up the process for experienced users.
Software options for every kind of project.
For larger projects or existing Cyclone users, Leica Geosystems Cyclone REGISTER 360 PLUS and Cyclone FIELD 360 are also available to help register your scans together and view scan data and imagery in real-time.
Not sure which model to get? Give us a call or take a look at this helpful guide!
In the Box
BLK2GO

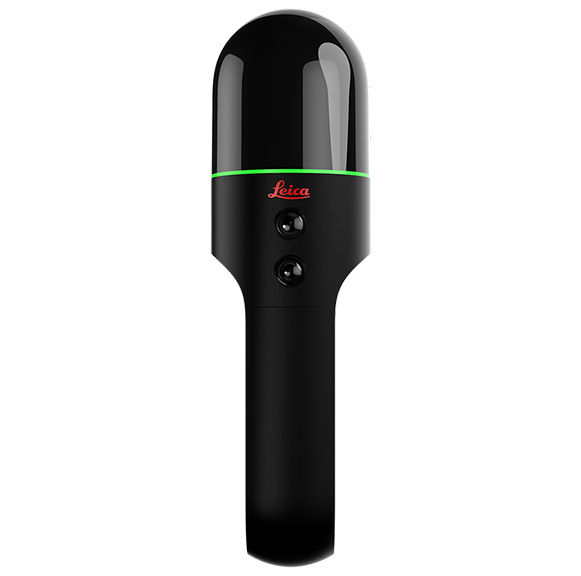

Leica BLK2GO Handheld Laser Scanner
Transportation Case
3x GEB821 Li-Ion Battery
GKL821 Multi Charge with AC Adapter
Table Stand
USB C Cable
Wrist Strap
Quick Guide
USB Documentation Card
CCP not included, should be ordered locally.
DESIGN & PHYSICAL
Housing Black anodized aluminum
Dimensions Height: 279 mm / Diameter: 80 mm
Weight 650 g (775 g including battery)
Transport cover BLK2GO transportation case
OPERATION
Stand-alone operation One-button operation
Mobile device BLK2GO Live app for iOS and Android including live 2D and 3D while scanning, device status and data management.
iOS 12.1 or higher recommended devices: iPhone series 8, X, 11, 12 Android 9 or higher. Recommended devices: Samsung Galaxy series S10, S20, S21
Communication Wireless (app connection)
Internal memory 24 hours of scanning (compressed data) / 6 hours (uncompressed data)
Battery Exchangeable, rechargeable Li-Ion battery (Leica GEB821) 45-50 minutes
LiDAR & IMAGING
Laser class 1 (in accordance with IEC 60825-1)
Wavelength 830 nm
Field of view 360° (horizontal) / 270° (vertical)
Range Min. 0.5 - up to 25 m
Point measurement rate 420,000 pts/sec
High resolution camera 12 Mpixel, 90° x 120°, rolling shutter
Panoramic vision system 3-camera system, 4.8 Mpixel 300° x 135°, global shutter
SYSTEM PERFORMANCE
(GRANDSLAM BASED)
Range noise * ** +/-3 mm
Accuracy indoor *** +/-10 mm
ENVIRONMENTAL
Robustness Designed for indoor and outdoor use
Operating temperature 0 to +40 °C
Dust & humidity protection IP54 (IEC 60529)
DATA PROCESSING
Data transfer Wireless and USB 3.0
Desktop software Leica Cyclone REGISTER 360 PLUS and Cyclone REGISTER 360 PLUS (BLK Edition)
All specifications are subject to change without notice.
All accuracy specifications are one sigma unless otherwise noted.
*at 78% albedo
**environment dependent
***controlled environment (scan duration 2 minutes)
