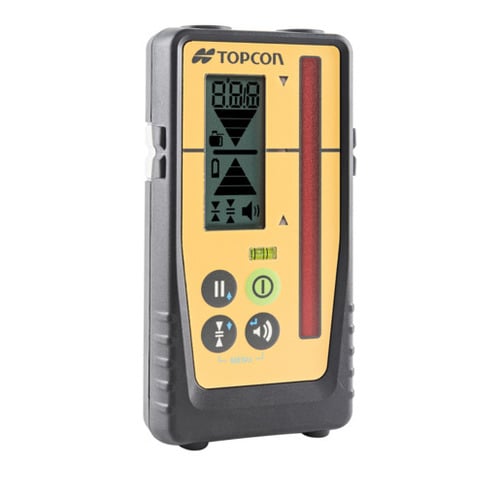

Topcon LS-100D (Kit) Compact Digital Laser Receiver without Holder
Model Number: 1011989-04
It is embedded with two strong round magnets that effortlessly attach it to any metal surface. Significantly boosts efficiency and accuracy across various tasks such as steel erections or excavation grade checking. This advanced sensor combines intuitive technology with superior precision, specifically tailored for easily controlling elevation and vertical alignment. The LS-100D Topcon receiver offers four accuracy settings ranging from ±0.5mm to ±10mm, catering to diverse operational needs. Its expansive 90mm reception height allows for capturing a wide laser beam, ensuring reliable performance even in challenging environments. Engineered with strobe-proof protection, the sensor guarantees dependable and swift results, empowering professionals with the confidence to achieve precise outcomes efficiently.
Features:
On-grade resolution 0.5 mm - 1.0 mm
90 mm reception height for extra-wide beam capture sensor
Magnets for vertical steel erection alignment
Hold button for locking display to read elevation results
Large & bright LCD displays (front & back)
Alert icons on LCD if Topcon rotating laser instrument is disturbed or when laser battery is low
Three colored LEDs
Sensor Holder 100 Screw mount (included component)
Compact Digital Laser Receiver Specifications:
Working Range (diameter): 2,600 feet with the RL-H4C, RL-SV2S, and RL-200 Series
Vertical Detecting Range: 3.5 inches (-1.1 in to +2.3 in.)
LCD Digital Readout Range: 2.7 inches; (-0.7 in. to +1.9 in.)
