The Topcon RL-HV1S is a versatile single-slope laser designed for a variety of tasks, including horizontal, sloping, and vertical applications. With an operating range of over 800 meters and the ability to handle slopes up to ±5% (±15% with a tilting plate), it offers exceptional accuracy and durability for construction and surveying projects. The included LS-100D receiver enhances functionality, ensuring reliable performance. It is compatible with Bluetooth Laser Manager app that lets you control the laser with your cell phone.
Horizontal, vertical, single, and dual slope applications
Long-range operation (800 m)
Tough IP66 construction rating
Extra-long battery life (up to 120 hours)
Laser class 1
Laser Manager Mobile App:
The Laser Manager is a revolutionary mobile app that streamlines laser operation by bringing many of the most common functions directly to your mobile device. This innovative functionality speeds up laser setup and allows you to adjust the laser beam across all axes. The Laser Manager App is available for free on both the Google Play Store and the Apple App Store.
Setting up position and slope
Setting up rotation speed and different working modes
Self inspection mode – will guide you easily through the calibration process

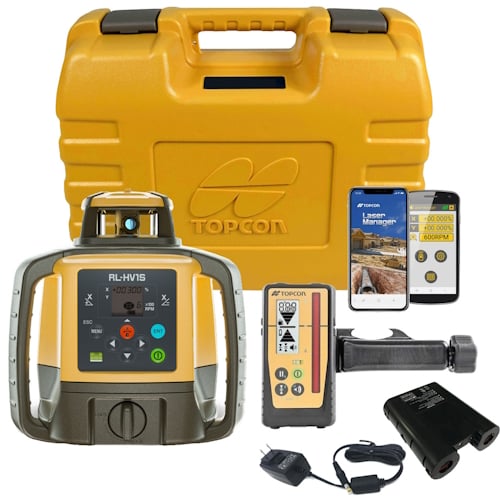

Includes:
RL-HV1S Single Grade Laser (Rechargeable Batteries)
LS-100D Long Range Laser Receiver Sensor 1011989-04
Receiver Rod Clamp Holder 110 (1019505-01)
BT-79Q NiMH Rechargeable Batteries (4 x D-Cell Alkaline batteries can be used as back-up)
Rugged Hard Shell Carrying Case
5-Year Warranty Guarantee
Specifications:
RL-HV1S Laser Specifications:
Accuracy: 1/16-inch @ 100-feet
Self-Leveling Range: ± 5 degrees
Working Range diameter: 2,600 feet
Rotation Speed: 300, 600 RPM
Light Source: Visible Red Laser 635NM
Laser Class: CDRH(FDA) IIIa IEC Class 3R
Dust / Water Rating: IP66
Operation Time: Alkaline: 120 hours
Operational Temp: -4ºF to 122ºF
Size: 7.0 x 7.7 x 8.5 in
Maximum Power Output: 2.4mW
Tripod Screw Thread: 5/8-11
LS-100D Laser Receiver Specifications:
Working Range (diameter): 2,500 feet with the RLHC, RL-SV2S, RL-HV2S and RL-200 Series Lasers
Vertical Detecting Range: 3.5 inch
LCD Digital Readout Range: 2.7 inch
Horizontal Detecting Range: ±45º
Strobe Light Suppression: Yes
Units / Measurements: mm / cm / inch / fractional inch
Grade Resolution Settings:
±0.02 inch
±0.05 inch
±0.10 inch
±0.20 inch
±0.50 inch
LCD Grade Indicators: 9 Channels
LED Grade Indicators: Orange, Green, Red (On/Off selectable)
Display: LCD on each side
Buzzer: Loud / Low / Off selectable
Bubble Tube: Yes
Warning Icons: HI Alert, Low Battery (for the RL-4HC, RL-SV2S, RL-HV2S and RL-200 Series)
Battery: One AA/LR6 dry-cell battery
Operation Time: Up to 45 hours with alkaline batteries
