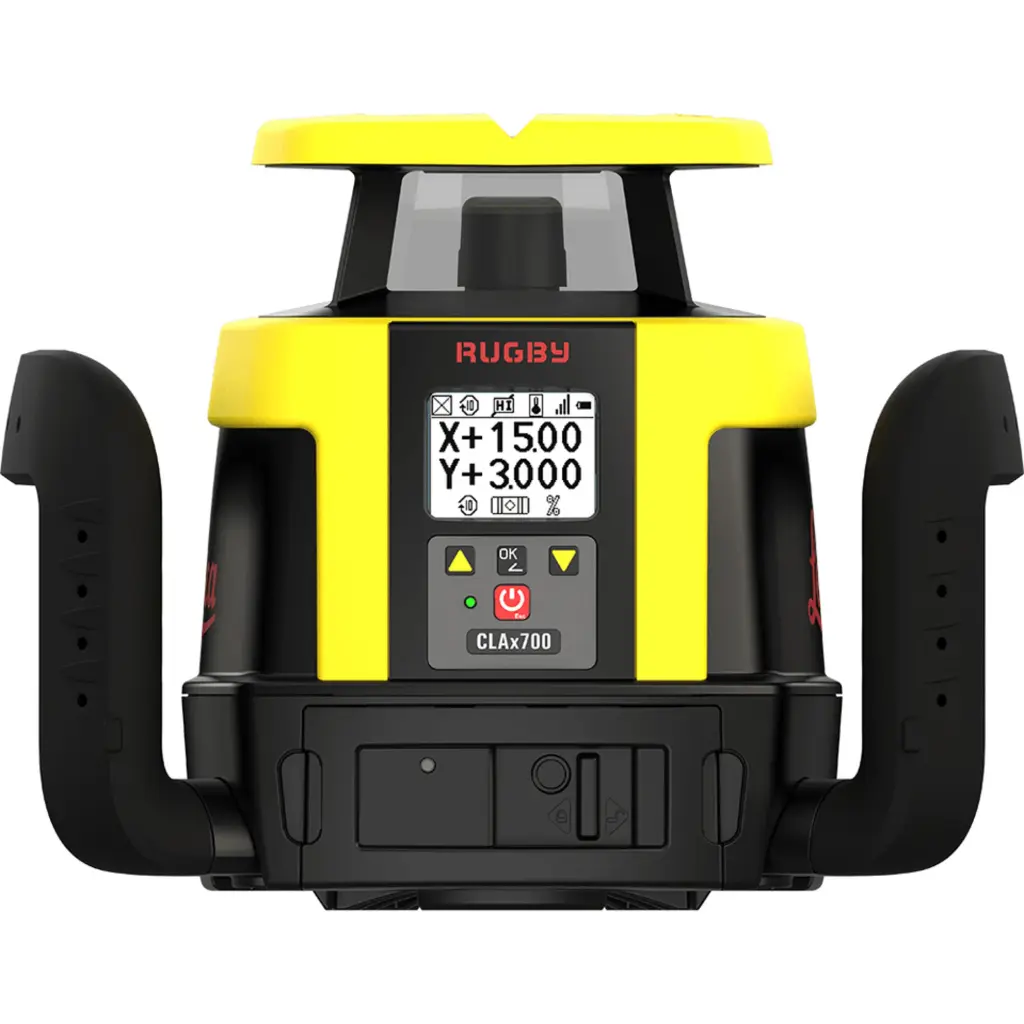

Leica Rugby CLAx700 Dual Slope Laser Level and Rechargeable Battery
Model Number: 6018543
The CLAx series from Leica combines rugged construction, versatile functionality, and high-performance optics to streamline your workflow. With options for manual or digital slope input, models support gradients from 8% to 15% and are tailored for both horizontal and vertical tasks. Each unit is engineered for durability and features onboard controls, allowing full operation without a remote.
Designed for long-range visibility and dependable beam strength, these lasers simplify setup and deliver pinpoint accuracy—helping you stay on schedule and within spec. The Rugby CLAx 700 is the complete solution, offering dial-in grade control directly on the device. You get exactly the features you need to get the job done—without paying for extras you won’t use.
The combo receiver/remote, rod eye receiver, tripod, and grade rod are also available and can be included upon request.
Features:
CLAx 700 offers digital dual grades up to 15% for both horizontal and vertical tasks
15% digital dual slope
Self-levelling grade laser
Fast head speed
Precision performance without downtime or delays
Consistency and accuracy
Accuracy of 1.5mm per 30m
Working distance of 675m (2000ft)
Beam Masking feature
Beam Catch feature
Digital Grade
Horizontal & Vertical Laser
Specifications:
Warranty: 5Y/2Y knockdown
Grade capability (X/Y Axes): 0.15
Self-levelling accuracy: ± 1.5 mm at 30 m (± 1/16" at 100 ft)
Self-levelling range: ± 6°
Operating range with Combo, RE 140/160: 1350 m diameter
Remote range (diameter): 600 m / 1000 ft
Laser class: 2
Environmental standard: IP68/MIL-STD-810G
Operating temperature:: -20 °C to +50 °C
Storage temperature: -40 °C to +70 °C
Rotation speed (RPS): 0, 2, 5, 10, 15 RPS
Batteries: Li-Ion
Battery operating time: 50 h
Battery charging: 5 h (full charge), 1 h fast charge = 8 h operating
