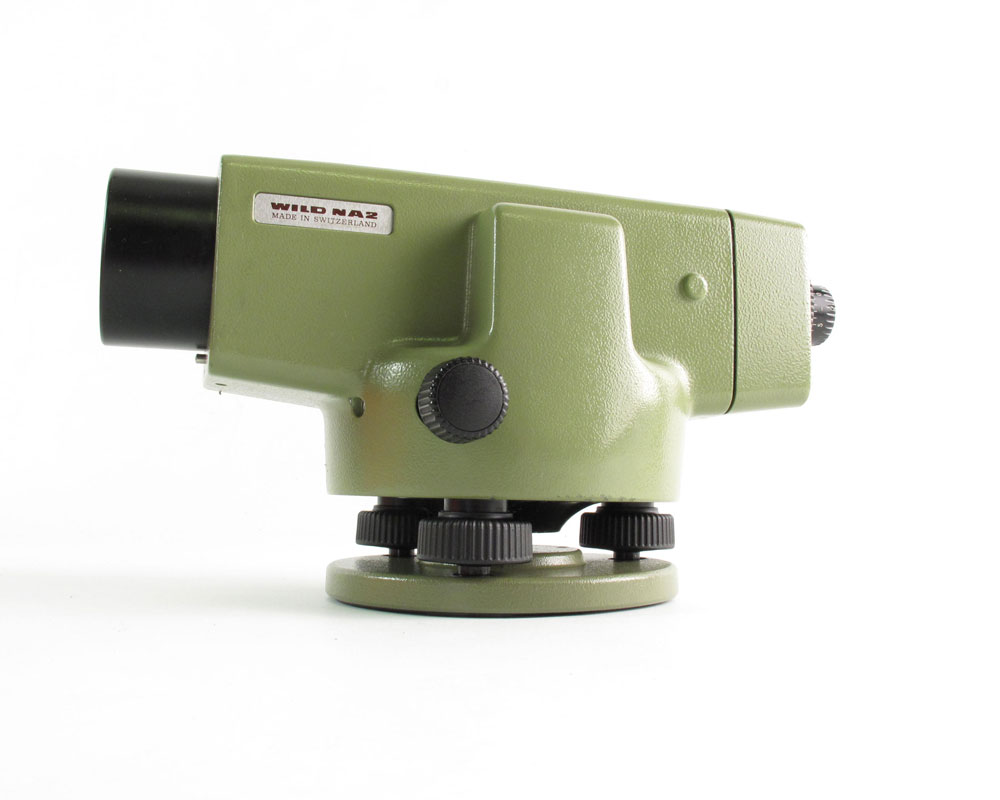

Leica NA2 32X Automatic Level
Leica's top-class optical quality gives the NA2 & NAK2 a bright high contrast image.
- push button compensator check
- endless horizontal drive for left and right handed users
- coarse and fine focusing knob
- play-free footscrews
- optional eyepieces available
- top-class optics
Accuracy (per 1km double run) | - 0.7mm (dependent on operator/technique)
- 0.3mm (with parallel-plate micrometer)
|
Magnification | - Standard: 32x
- with FOK73 eyepiece*: 40x
|
Shortest Focusing Distance | |
Compensator Setting Accuracy | |
To improve accuracy a parallel plate micrometer can be fitted over the telescope objective. The parallel plate micrometer permits direct readings to 0.1mm and estimated readings to 0.01mm. This makes the NA2 and NAK2 an ideal precise level.
