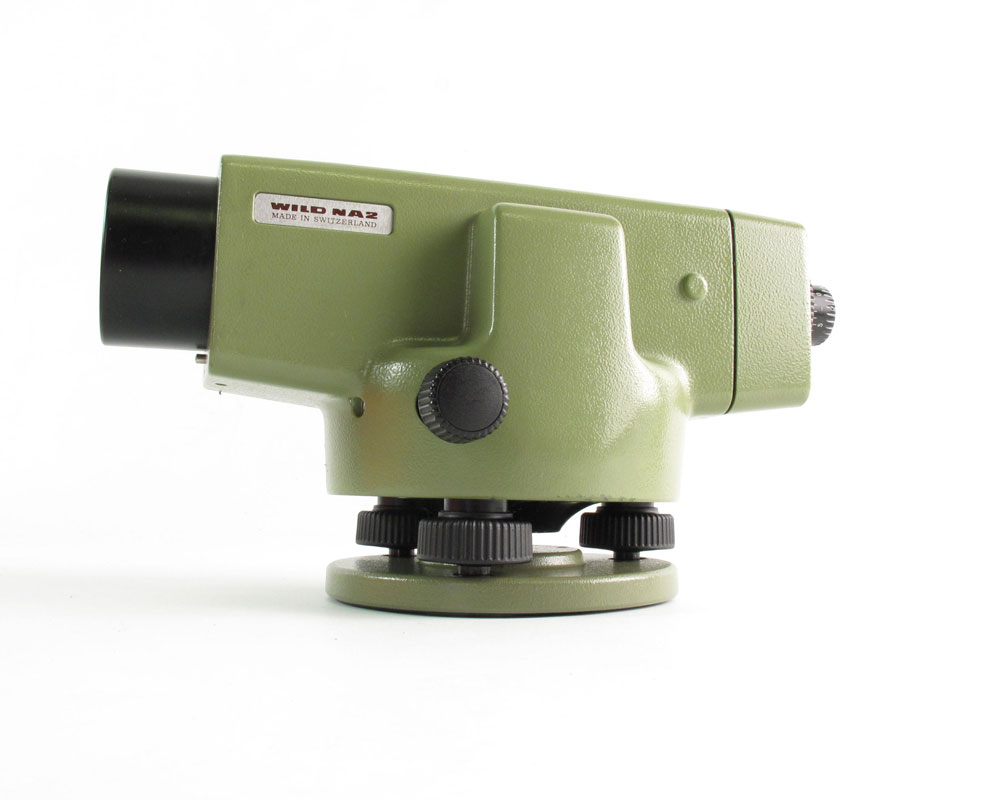

Leica's top-class optical quality gives the NA2 & NAK2 a bright high contrast image.
push button compensator check
endless horizontal drive for left and right handed users
coarse and fine focusing knob
play-free footscrews
optional eyepieces available
top-class optics
Accuracy (per 1km double run)
0.7mm (dependent on operator/technique)
0.3mm (with parallel-plate micrometer)
Magnification
Standard: 32x
with FOK73 eyepiece*: 40x
Shortest Focusing Distance
1.6m
Compensator Setting Accuracy
0.3"
To improve accuracy a parallel plate micrometer can be fitted over the telescope objective. The parallel plate micrometer permits direct readings to 0.1mm and estimated readings to 0.01mm. This makes the NA2 and NAK2 an ideal precise level.
