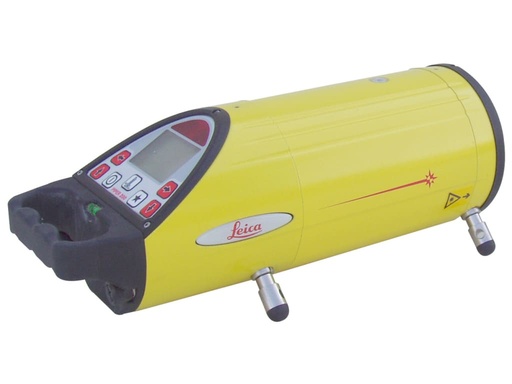

748704 Piper 100 Laser Package

The most versatile pipe lasers on the market, the Leica Piper 100 brings exceptional performance, accuracy and simplicity to sewer construction and pipe applications. The compact Piper fits inside a 100 millimetre (4 inch) pipe, assuring easy and efficient setup even in the smallest inverts.

High application versatility

In the pipe, over the top or in the manhole, the Leica Piper always delivers outstanding performance.

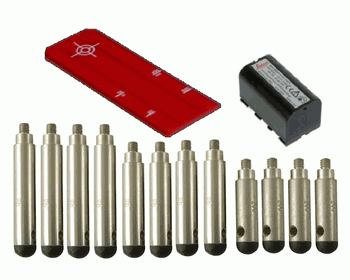

• In the pipe - Piper's self-centering, rubber tipped feet and robust, cast-aluminum housing assures the highest reliability in pipeline construction.

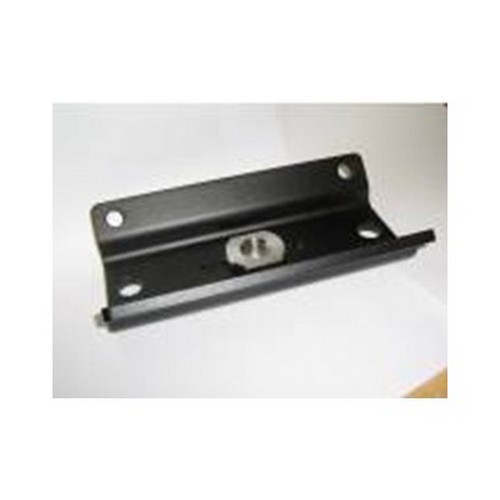

• Over the top - In above-ground tasks, the optional scope and the mount kit provide user-friendly solution for simple setup and operation.
• In the manhole - In manhole applications, Piper's unique design and wide stable base make it easy to set up even in the tightest inverts.
• Piper is 100% waterproof (sealed to IP X8 protection standard) and has a positive pressure nitrogen seal to deliver the ultimate reliability.

Piper hits the target every time

Piper is ideal anywhere line and grade is required.

• Large clear display for easy grade reading. Line position, battery status and level indication.
• Piper's bright, visible beam is focused to maintain its crisp, clear spot and size over long distances.
• Automatic grade compensation easily identifies and corrects grade errors. Piper automatically self-levels over a full grade range and eliminates the need to tip the laser for steep slopes.

Increased productivity with smart features

The Piper 100 provides pipe and sewer contractors with smart, user-friendly features for enhanced application performance.

• Strobe Mode - its multi-functional remote control strobes the laser beam for increased visibility.
• Top pivot point (Lighted Pivot Point) and Battery Saving Mode.
• Alignmaster function - a patented automatic targeting system that searches and finds the target for fast second day setups, minimising downtime on the jobsite.

Current Piper 100 lasers are in laser class 3 which requires additional safety regulations in some countries.

Specifications

• Laser Type: 635 mm (red) Laser Class 3R
• Working range: 200 m
• Laser Output: 4.75 mW Maximum
• Grade Range: -10% to +25%
• Self-levelling Range: -15% to +30%
• Line Movement: 6m at 30m
• Battery type: Lithium-Ion
• Operation/charge (depen- dant on environmental conditions): 40h / 4h
• Operating temp range: -20°C to +50°C
• Weight: 2kg
• Protection class (splash water/dust proof): IPx8
• Construction: Cast Aluminum
• Dimensions Diameter x length: 96 x 267 mm
• Wireless remote: Front 150m, back 10m
• Alignmaster (Auto. targeting System): No
