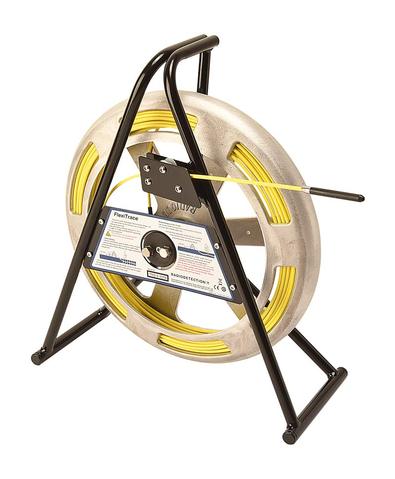

Compatible with a range of Schonstedt pipe & cable locators (Sold Separately), FlexiTrace is a flexible, conductive rod with a sonde at the end. When one transmitter lead is connected to FlexiTrace, the conductive rod can be used to trace non-metallic pipes. When both leads are connected, the end behaves like a sonde to help locate blockages.
• Rod diameter of 0.2” (5mm) • Length of up to 263’ (80m) • Pinpoints the location of a blockage • Traces the route of non-metallic pipes or conduits
FlexiTrace™ Specifications
Length
Weight
Min Bend Radius
Rod Connection
164’ (50m)
13 lbs (6 kg)
10” (250 mm)
Built in sonde
263’ (80m)
14 lbs (6.5 kg)
10” (250 mm)
Built in sonde
FlexiTrace™ Frame Size
Rod Diameter
Length
Width
Height
0.2” (5mm) FlexiTrace
33” (850 mm)
21” (520 mm)
37” (940 mm)
FlexiTrace is used with a Schonstedt Pipe & Cable Locator to find and trace small diameter, non-metallic pipes and other non-conductive utilities. The entire length of FlexiTrace can be detected from above ground. The FlexiTrace reel holds 164’ (50m) or 262’ (80m) of small diameter rod. The flexible rod can be energized by a transmitter and inserted into pipes as small as 0.5” (12mm).
